Palletizing equipment

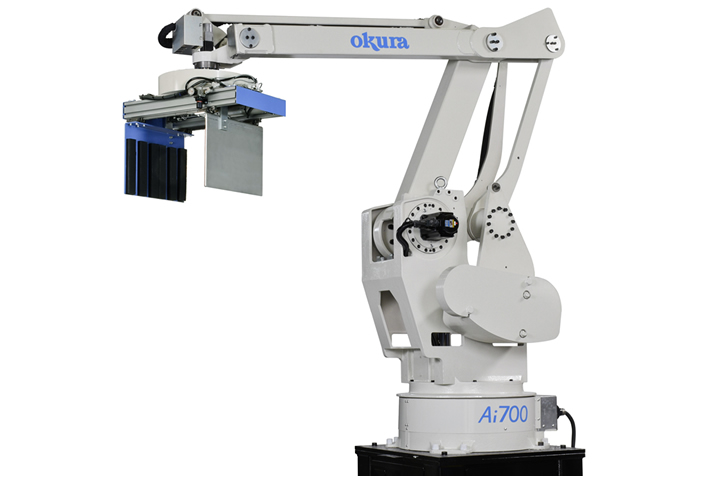

Robot Palletizer Ai700Standard speed model
Standard specifications
| Model | Ai700 |
|---|---|
| Motion System | Multi - Articulated, Polar Coordinate System |
| Maximum Payload | 140kg（308 lbs） 160kg（352 lbs）*with optional counter weight |
| Controlled Axis | 4 |

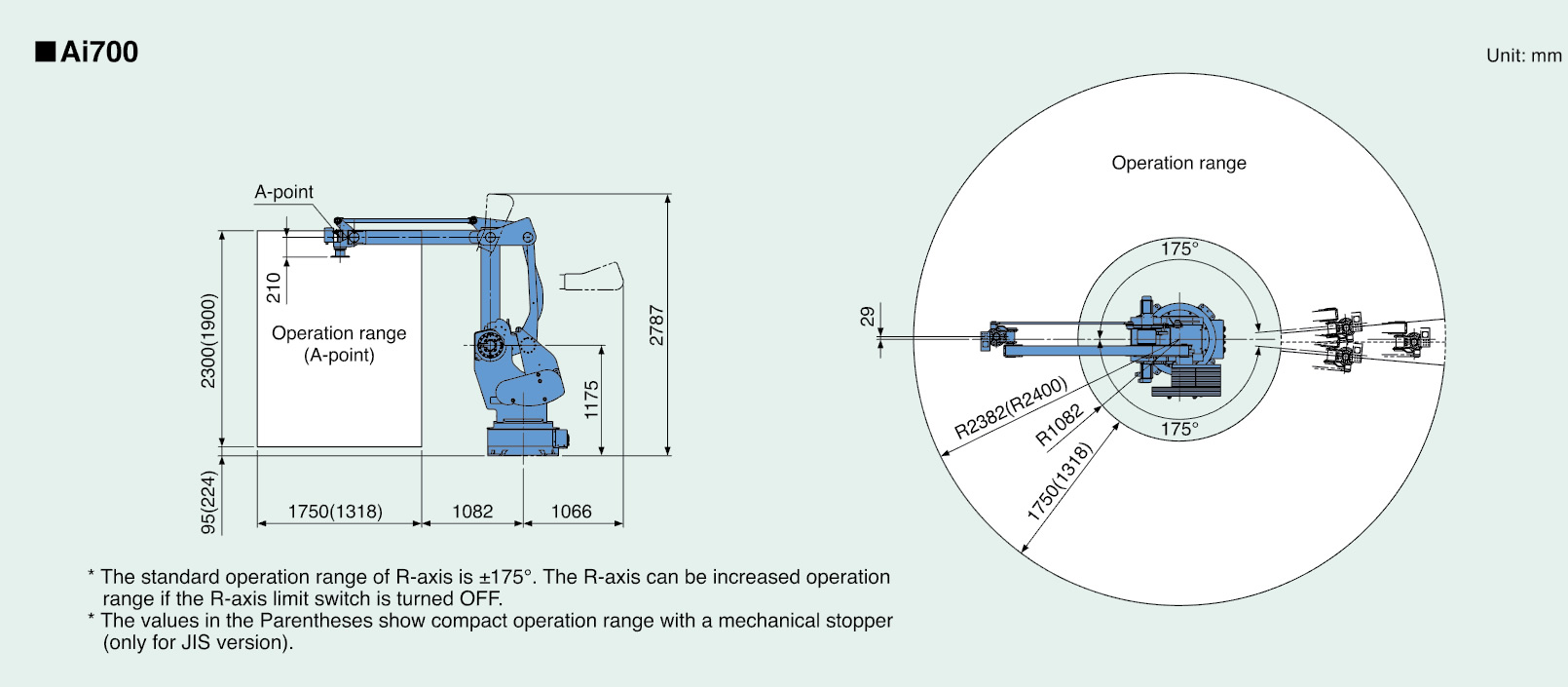

| Degree of Operation Range |
R-axis: 360 degrees, D-axis: 2300mm, O-axis: 1750mm, T-axis: 440 degrees |
| Handling Rate | 700 cycles/hour |
| The handling rate depends on layout and/or hand specifications | |
| Repeatability | ±1mm |
| Robot Weight | 1335kg（2943 lbs）140kg payload 1375kg（3031 lbs）160kg payload |
| Pneumatic Consumption | 180L/min (ANR) |
| 300L/min (ANR) when equipped with a pallet dispenser | |
| Ambient Temperature | 0－40° |
| Relative Humidity | 35－85% |
| Power | 2.5kVA |
| Color | Nittoko C25-80B（Japan Painting Industry） |
