Palletizing equipment
Robot Palletizer Ai1800Ultra high speed model
Standard specifications
| Model | Ai1800 | |
|---|---|---|
| Ai1800 | Ai1800-W | |
| Motion System | Multi - Articulated, Polar Coordinate System | |
| Maximum Payload | 160kg（352 lbs） | 350kg（771 lbs） |
| Controlled Axis | 4 | |

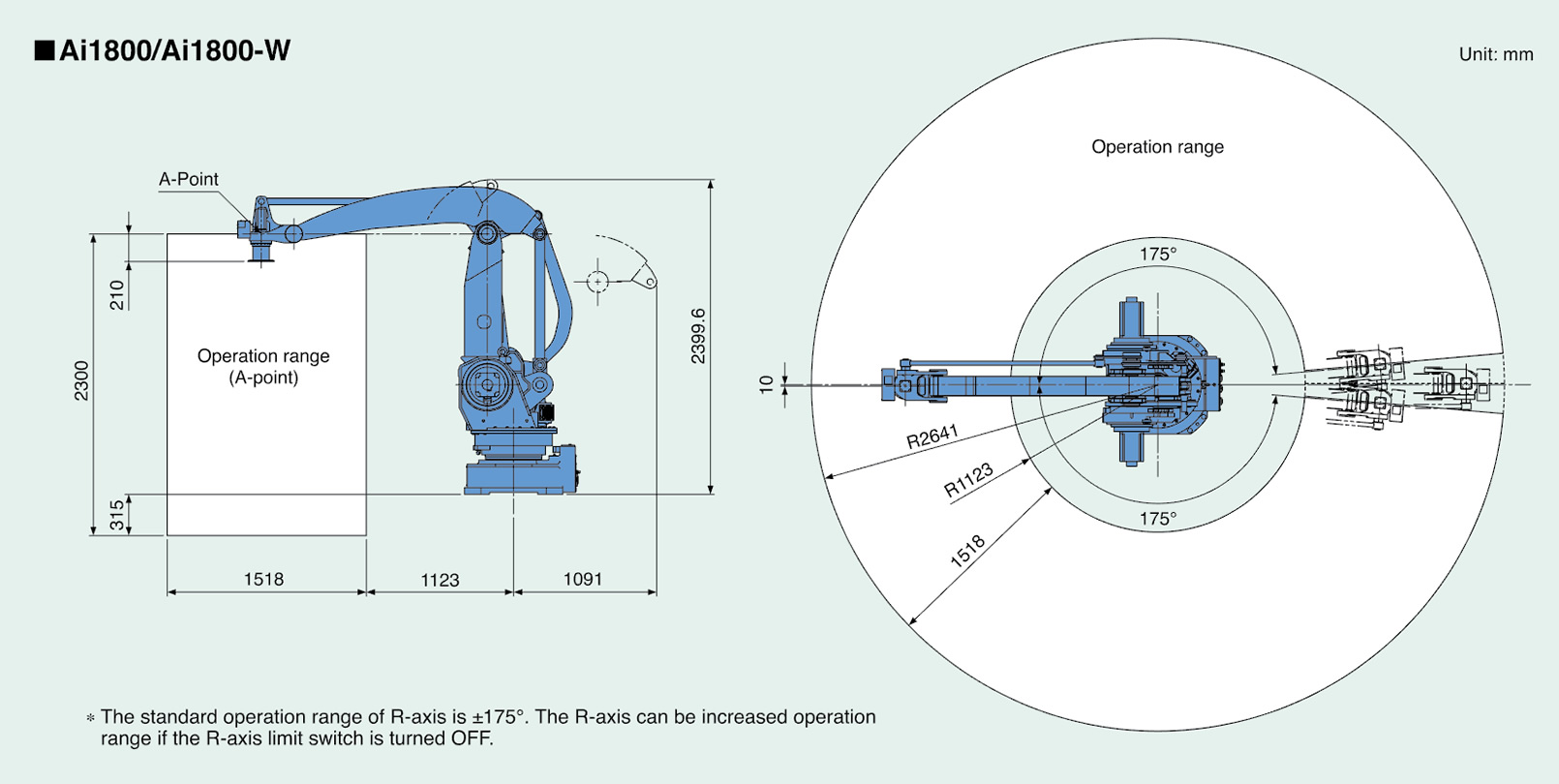

| Degree of Operation Range |
R-axis: 360 degrees, D-axis: 2300mm, O-axis: 1518mm, T-axis: 440 degrees |
|
| Handling Rate | 1720 cycles/hour | 500 cycles/hour |
| The handling rate depends on layout and/or hand specifications | ||
| Repeatability | ±1mm | |
| Robot Weight | 1295kg (2854 lbs) | 1360kg (2998 lbs) |
| Pneumatic Consumption | 180L/min (ANR) | |
| 300L/min (ANR) when equipped with a pallet dispenser | ||
| Ambient Temperature | 0－40° | |
| Relative Humidity | 35－85% | |
| Power | ||
| 6.5kVA | ||
| Color | Nittoko C25-80B（Japan Painting Industry） | |
