Palletizing equipment

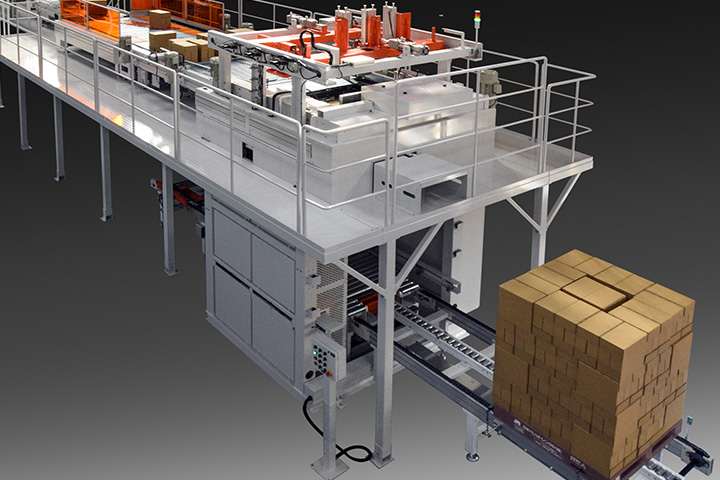

PHC80S and PHC100SHigh-capacity case palletizer
These systems deliver high-speed palletizing that is ideal for beverage plants.
Features
- High capacity
These systems deliver high-speed palletizing at up to 80 cases per minute for the PHC80S or 100 cases per minute for the PHC100S.
- Energy-saaving, low-noise design
These systems use a simple, energy-saving mechanism that does not waste power.
- Impact-free design
Turns and branches in the product flow are handled gently so that products are not damaged.
- Low maintenance
A simple, modular design keeps maintenaice simple.
- Easy operation
A touch panel keep operation and configuration simple.
Basic system architectre
- Turn conveyor
- Multi-lane diverter
- Palletizing process

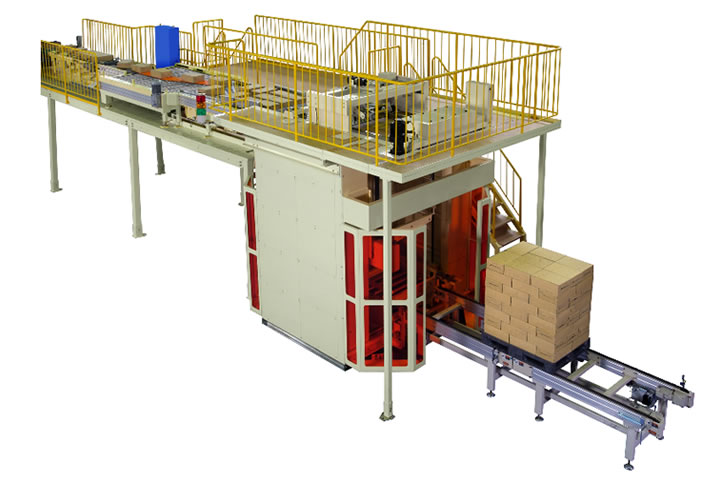

※Photo: PHC100S
Specification
| Model | PHC80S | PHC100S |
|---|---|---|
| Transported products | Cardboard boxes, etc. | Cardboard boxes |
| Transported product size（mm） | 180-285W×270-430L |
280W×410L ※For 350 mL, 8 cases×8 levels. |
| Processing capacity | 80items/min. | 100items/min. |
| Palletizing height（mm） | Max. 1,820 （including pallet dimensions） |
Max. 1,400 （including pallet dimensions） |
| Palletizing weight | 1,350 kg/pallet （including pallet weight） |
800 kg/pallet （including pallet weight） |
| Pallet size（mm） | 900-940W×1,100-1,540L×130-145H, 1,100W×1,100L×130-145H |
900W×1,100L×140H |
*Processing capacity varies with factors such as palletizing pattern, number of stacking levels, and properties of the products being palletized.
