Line-shaft driven roller conveyors
QLY (30ﾟ Branch unit）
Line-shaft driven roller conveyors
These merge and branch units are designed for use with line-shaft driven roller conveyors.
Specifications
| Model | QLY (30ﾟ Branch unit） | |||
|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 |
| W External frame width(mm) | 375 | 460 | 560 | 690 |
| Roller pitch (mm) | 40 | |||
| L Length (mm) | 2,000 | |||
| Minimum height (mm) | 300 | |||
| Frame (mm) | ［ 60×30×t2.3 | |||
| Carrier rollers | φ31.8 (with grooves) | |||
| Belt | Urethane round belt | |||
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

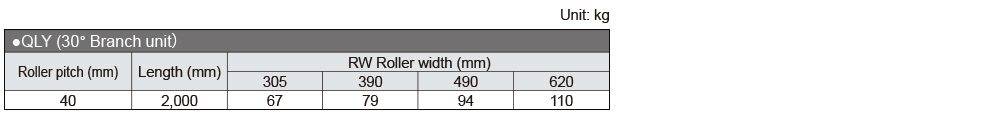

Weight

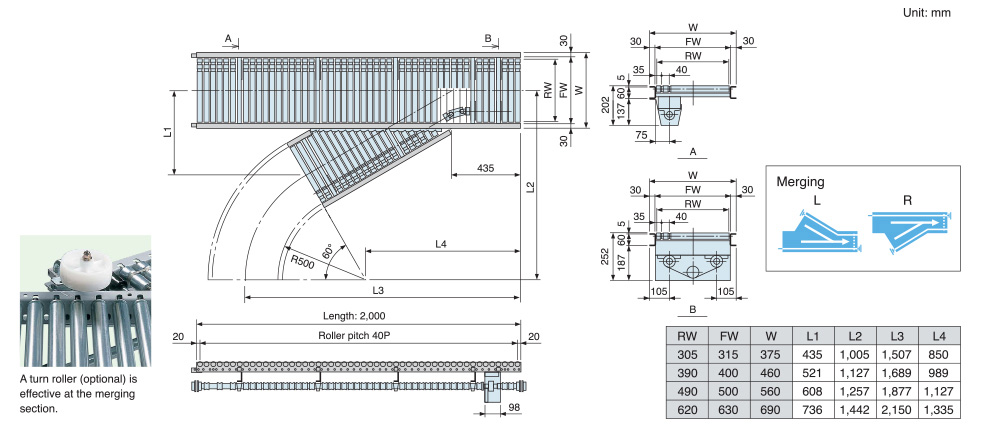

Standard drawings

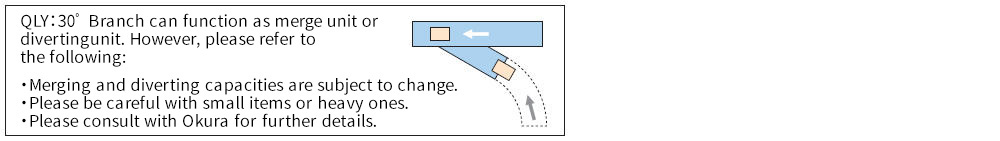

Merging of QLY
