Line-shaft driven roller conveyors
QLR（30ﾟ Roller diverter）
Line-shaft driven roller conveyors
Line-shaft driven roller diverter unit
Specifications
| Model | QLR（30ﾟ Roller diverter） | ||
|---|---|---|---|
| RW Roller width (mm) | 390 | 490 | 620 |
| FW Inner frame width (mm) | 400 | 500 | 630 |
| W External frame width (mm) | 460 | 560 | 690 |
| Roller pitch (mm) | 40(-80 partially) | ||
| L Length (mm) | 2,000 | ||
| Minimum height (mm) | 300 | ||
| Frame (mm) | ［ 60×30×t2.3 | ||
| Carrier rollers | φ31.8 (with grooves) | ||
| Belt | Urethane round belt | ||
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

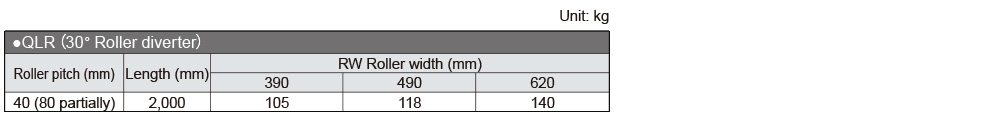

Weight

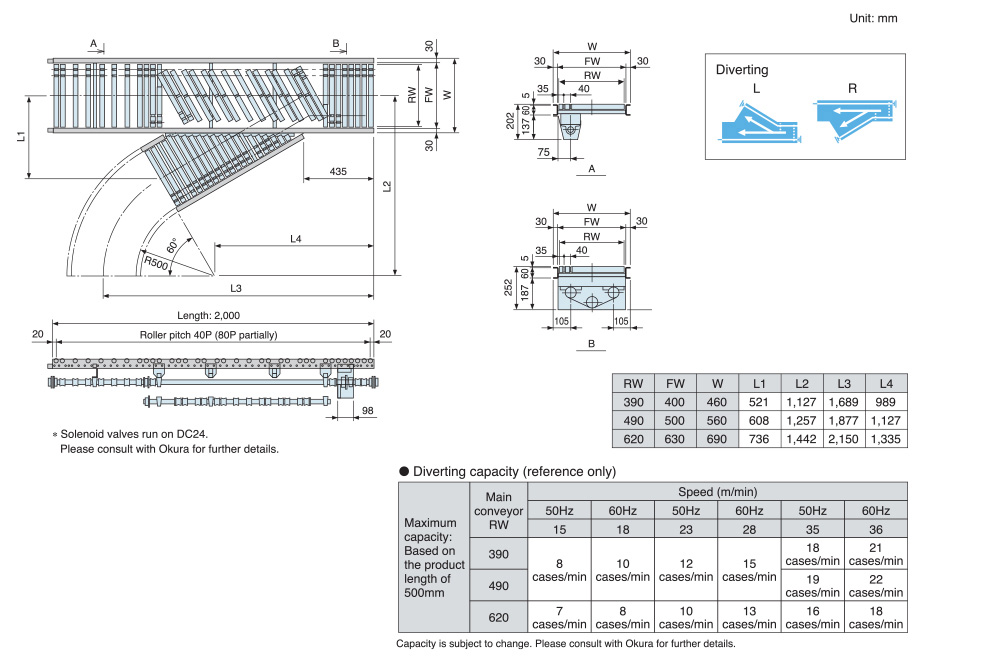

Standard drawings
