Line-shaft driven roller conveyors
QLM（Motor driven unit）/QLS（Straight unit）
Line-shaft driven roller conveyors
A variety of types, including straight, curved, and branch, are available as units, and can be either connected or driven with a single motor.
Specifications
| Model | QLM (Motor driven unit) QLS (Straight unit) | |||
|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 |
| W External frame width(mm) | 375 | 460 | 560 | 690 |
| Roller pitch (mm) | 40、80 | |||
| L Length (mm) | 1,000、2,000（QLM：560≦L≦2,000 ／ QLS：400≦L≦2,000） | |||
| Minimum height (mm) | 300 | |||
| Frame (mm) | ［ 60×30×t2.3 | |||
| Carrier rollers | φ31.8 (with grooves) | |||
| Belt | Urethane round belt | |||
| Speed (50/60 Hz) *1 | （QLM）15/18 23/28 35/42 m/min | |||
| Motor output | （QLM）0.2kW 0.4kW | |||
| Power supply | （QLM）AC200V (3-phase) | |||
- Speed figures above represent nominal speeds. For more information, please contact Okura's Sales Department.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.
Motor output selection guidelines

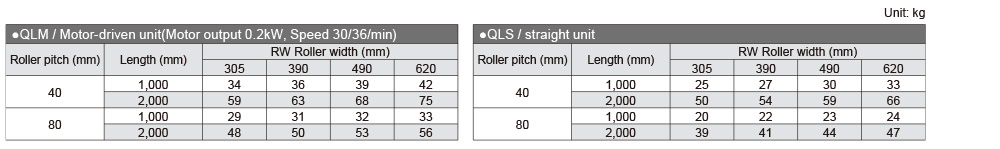

Weight

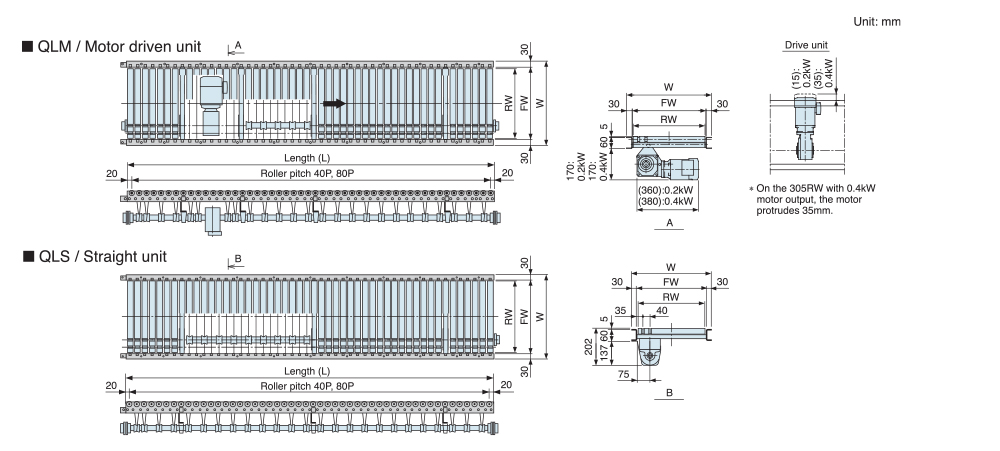

Standard drawings

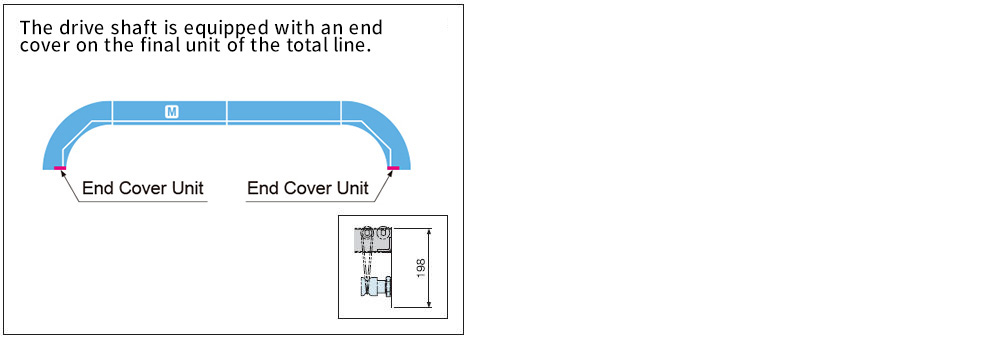

End Cover Unit
