Line-shaft driven roller conveyors
QLE(R500 Curve unit)
Line-shaft driven roller conveyors
Flexible support for a variety of layouts.
These curved line-shaft driven roller conveyors come with an inner radius of R500.
Specifications
| Model | QLE(R500 Curve unit) | |||
|---|---|---|---|---|
| Inner radius (mm) | 500 | |||
| RW Roller width (mm) | 305 | 390 | 490 | 620 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 |
| W External frame width(mm) | 375 | 460 | 560 | 690 |
| Curve angle | 90°、 60°、 400＋45°＋400 | |||
| Minimum height (mm) | 300 | |||
| Frame (mm) | ［ 60×30×t2.3 | |||
| Carrier rollers | Tapered roller with groove diameter 42.7mm | |||
| Belt | Urethane round belt | |||
- 90°curved units with a motor can be fabricated dependent on consultation with Okura.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.
- The line shaft is always inside.

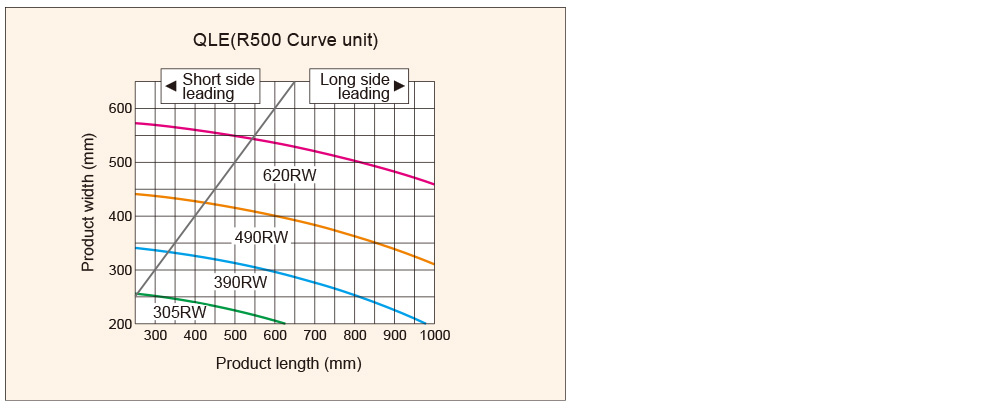

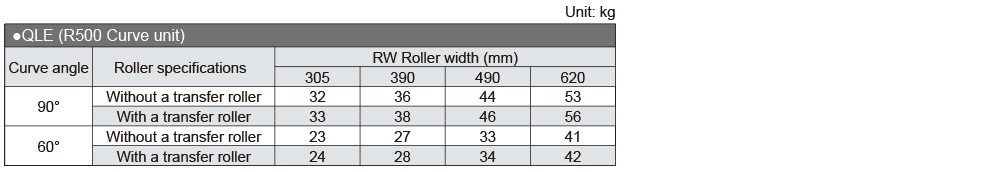

Weight

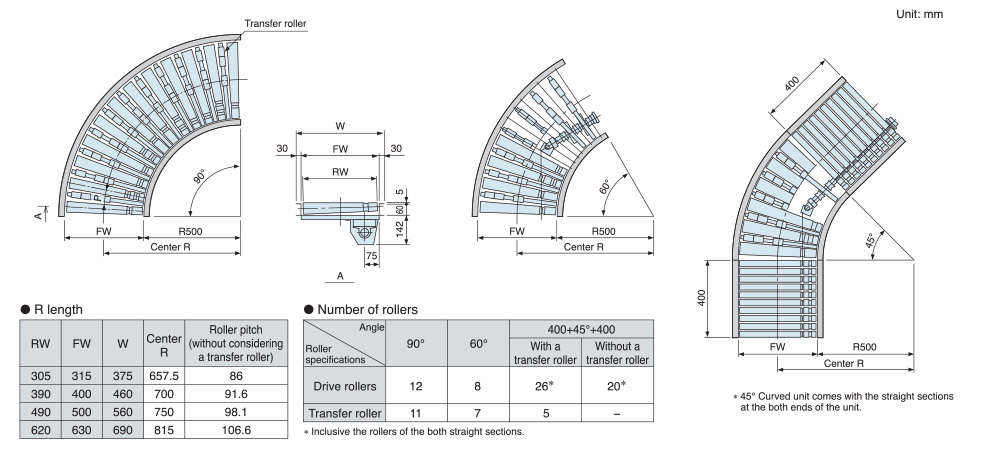

Standard drawings
