Belt-driven roller conveyors
QHS
Belt-driven roller conveyors
These conveyors drive rollers
with a 30mm wide flat belt.
Specifications
*Colored text is semi-standard.
| Model | QHS | |||
|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 |
| W External frame width (mm) | 375 | 460 | 560 | 690 |
| Roller pitch (mm) | 40、80 | |||
| L Length (mm) *1 | 40P…800≦L≦3,000（forward-direction transport） 800≦L≦2,000（reverse-direction transport） 80P…800≦L≦6,000（forward-direction transport） 800≦L≦4,000（reverse-direction transport） |
|||
| Minimum height (mm) | 350 | |||
| Frame (mm) | ［ 60×30×t2.3 | |||
| Carrier rollers | φ31.8 | |||
| Belt | 30mm wide flat belt | |||
| Speed (50/60 Hz) *2 | 15/18 20/24 30/36 m/min | |||
| Motor output | 0.2kW 90W | |||
| Power supply | 200V AC (3-phase) | |||
- Maximum conveyor length depends on weights of handled products
- Speed figures above represent nominal speeds. For more information, please contact Okura's Sales Department.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

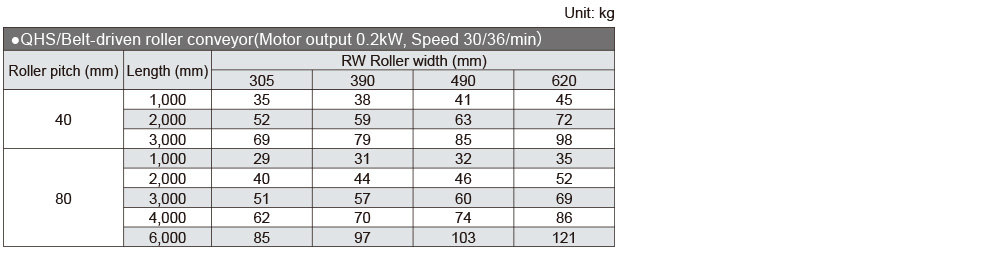

Weight

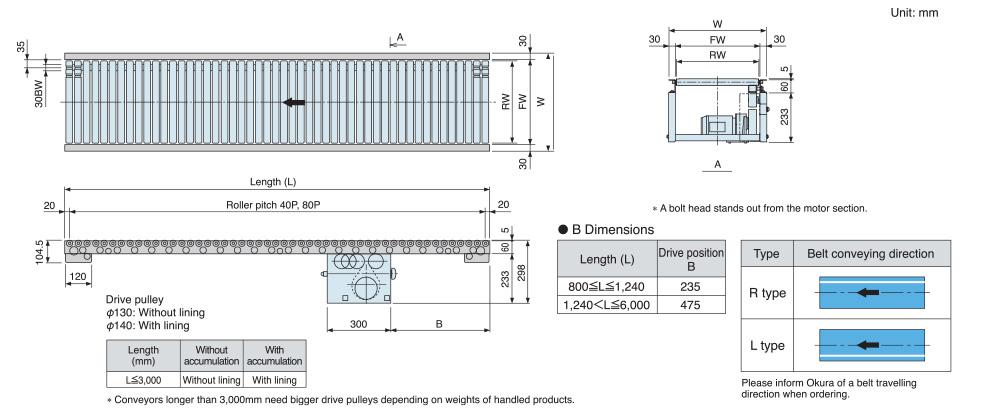

Standard drawings
