Belt conveyors
QBK
Inclined belt conveyors
Maximum angle of 30ﾟ is possible thanks to a vertical grooved belt.
Specifications
*Colored text is semi-standard.
| Model | QBK | |||
|---|---|---|---|---|
| Drive method | Center drive | |||
| BW Belt width (mm) | 265 | 350 | 450 | 580 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 |
| W External frame width(mm) | 375 | 460 | 560 | 690 |
| Carrier roller pitch (mm) | 120、 80 | |||
| Length (mm) | 1,900≦L≦8,000（Upper feeder＋Slope＋Lower feeder) | |||
| Minimum height (mm) | 230 | |||
| Frame (mm) | ［ 60×30×t2.3 | |||
| Belt | Slope: Plastic guide belt (2-ply), Lower feeder portion: Plastic guide belt (1-ply) Endless-type belt connections |
|||
| Speed (50/60 Hz) *1 | 15/18 20/24 30/36 m/min | |||
| Motor output | With brake:90W | |||
| Power supply | 200V AC (3-phase) | |||
- Speed figures above represent nominal speeds. For more information, please contact Okura's Sales Department.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.
- Please consult with Okura if you need the inclined angle bigger than 20ﾟ.

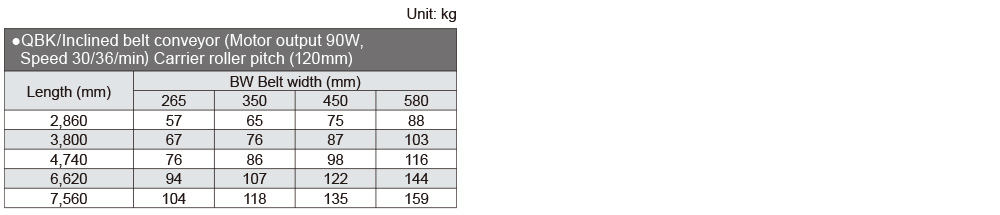

Weight

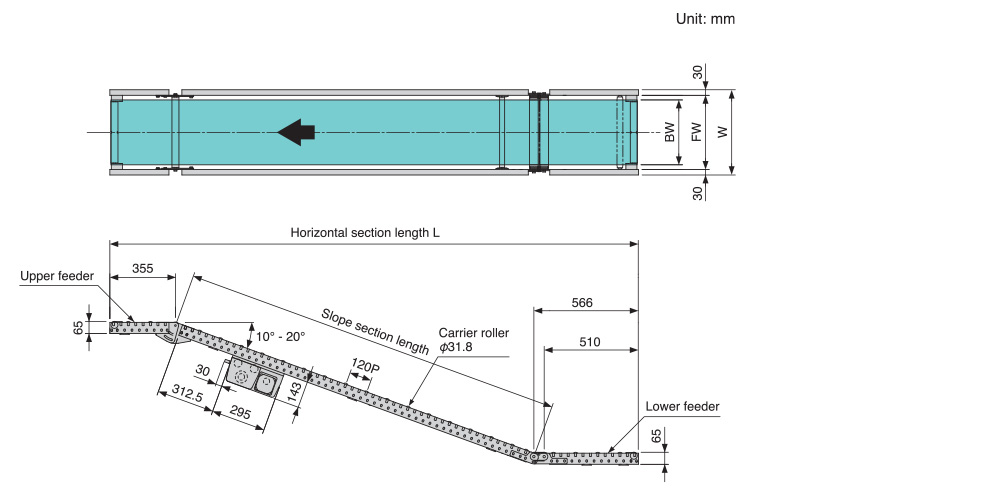

Standard drawings
