Wide belt conveyor Standard type

Wide belts for a wide range of applications.

With a belt width of up to 1,450 mm, these conveyors can handle a variety of products.

Specifications

Model WBH (standard type)
Drive system Center drive
BW Belt width (mm) 850 950 1,050 1,150 1,250 1,350 1,450
FW Inner frame width(mm) 900 1,000 1,100 1,200 1,300 1,400 1,500
W External frame width(mm) 960 1,060 1,160 1,260 1,360 1,460 1,560
L Length (mm)MIN. 2,150 2,400 2,650 2,900 3,150 3,400 3,650
MAX. 12,000
Minimum height (mm) 460
Frame (mm) Aluminum (frame height) 110
ベルト Plastic flat belt (2-ply)
Speed (50/60 Hz) *1 15/18 20/24 24/30m/min
Motor output *2 0.4 kW, 0.75 kW, 1.5 kW (heavy-duty type)
Power supply 200V AC (3-phase)
  1. Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
  2. Premium efficiency motors are adapted for 0.75kW and 1.5kW.
  • We can manufacture systems with non-standard specifications. Please contact Okura for more information.

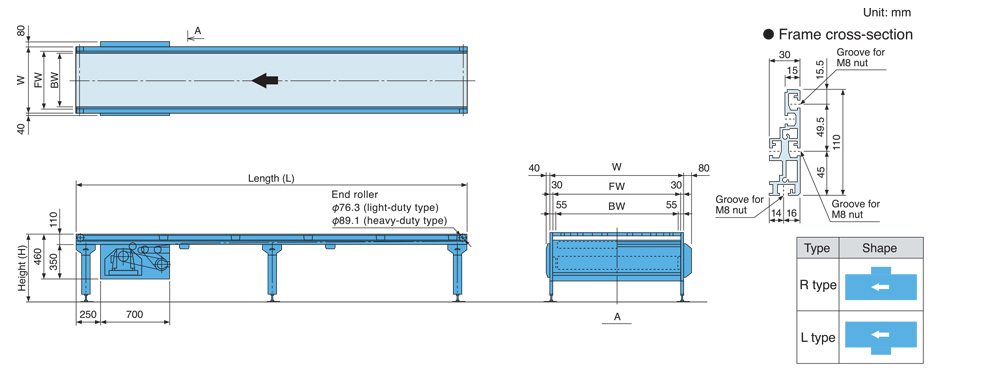

Standard drawings

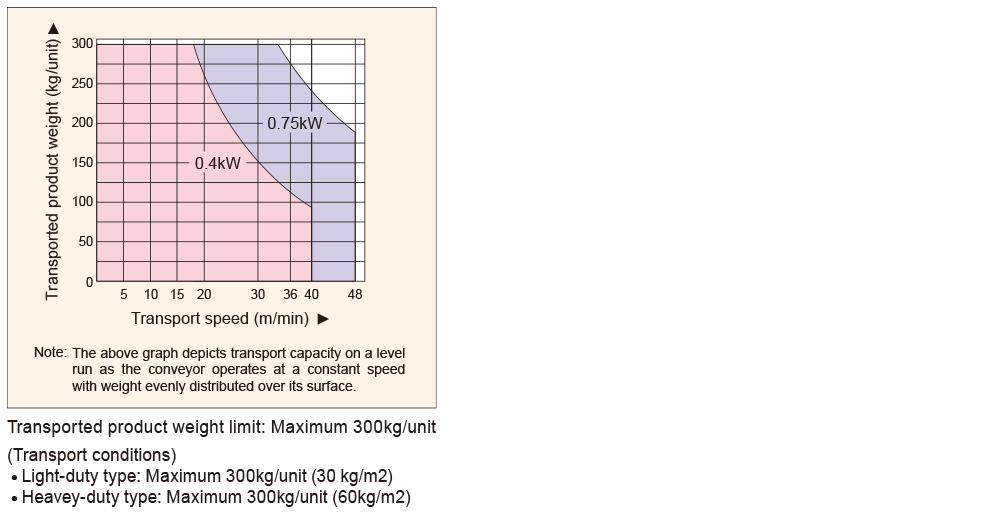

Restrictions on handled products
