Line-shaft driven roller conveyors

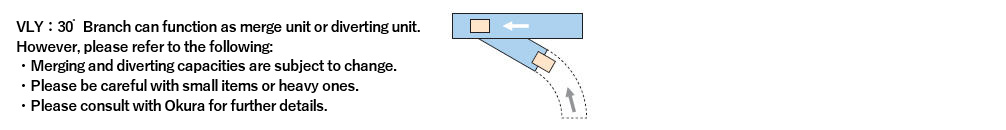

VLY（30ﾟ Branch Unit）
Line-shaft driven roller conveyors
Line-shaft driven roller conveyor merge unit
Specifications
*Colored text is semi-standard.
| Model | VLY（30ﾟ Branch Unit） | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 | |||||
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 | |||||
| W External frame width(mm) | 375 | 460 | 560 | 690 | 760 | |||||
| Roller pitch (mm) | 75 | |||||||||
| L Length (mm) | 1,950 | |||||||||
| Minimum height (mm) | 300 | |||||||||
| Frame (mm) |  130×30×11.5×t2.3 |
|||||||||
| Carrier rollers | φ48.6 (with grooves) | |||||||||
| Belt | Urethane round belt | |||||||||
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.
Standard drawings
VLY merging
