Line-shaft driven roller conveyors
VLR（30ﾟ Roller diverter）
Line-shaft driven roller conveyors
Line-shaft driven conveyor diverter to switch the direction of the rollers pneumatically.
Specifications
| Model | VLR（30ﾟ Roller diverter） | |||
|---|---|---|---|---|
| RW Roller width (mm) | 390 | 490 | 620 | 690 |
| FW Inner frame width(mm) | 400 | 500 | 630 | 700 |
| W External frame width(mm) | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | 75 | |||
| L Length (mm) | 1,950 | |||
| Minimum height (mm) | 300 | |||
| Frame (mm) |  130×30×11.5×t2.3 |
|||
| Carrier rollers | φ48.6 (with grooves) | |||
| Belt | Urethane round belt | |||
- Cannnot be used with the 305RW.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

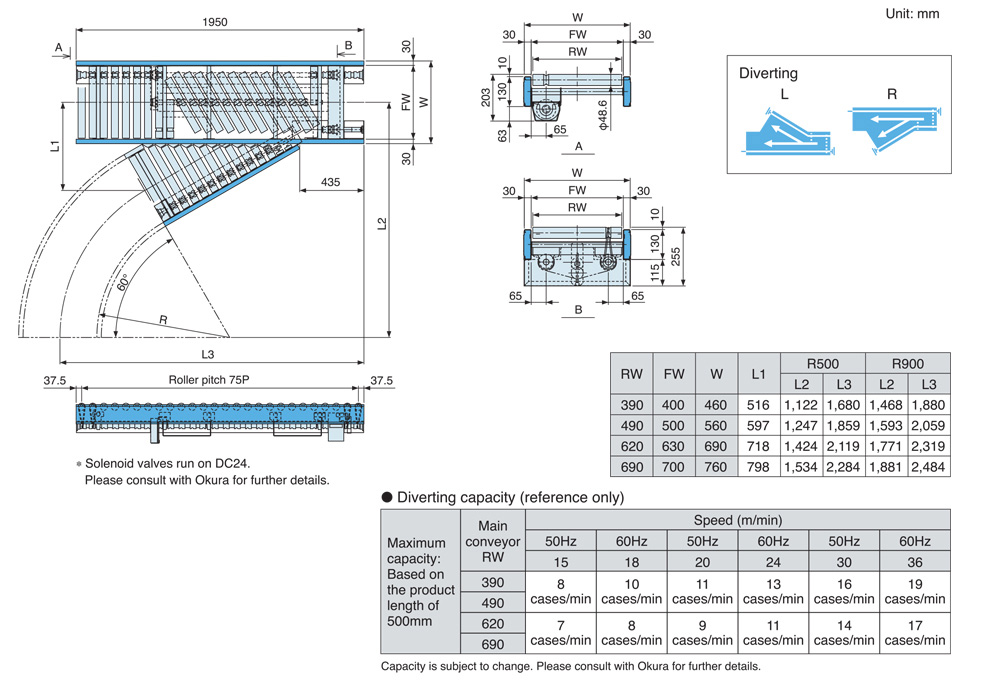

Standard drawings
