Line-shaft driven roller conveyors

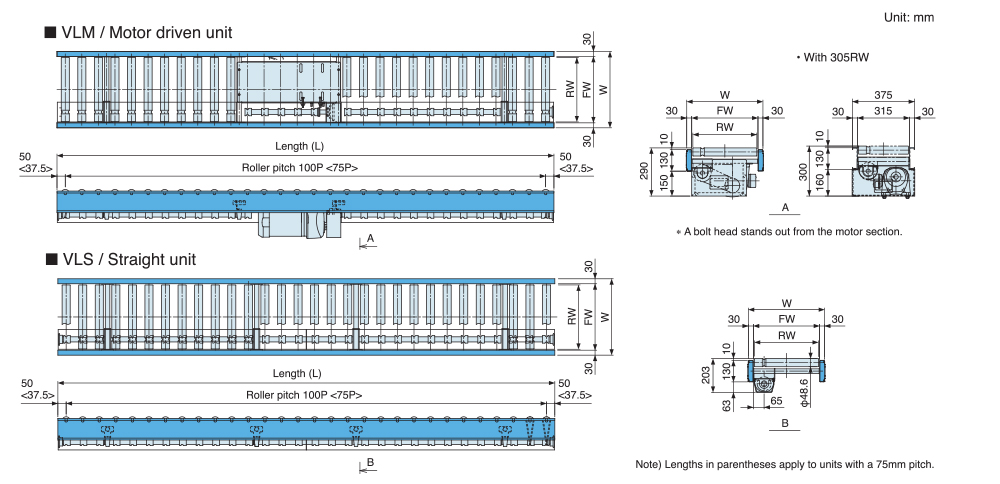

VLM（Motor driven unit）/VLS（Straight Unit）

A variety of types, including straight, curved, and branch, are available as units, and can be either connected or driven with a single motor.

Specifications

*Colored text is semi-standard.

Model	VLM（Motor driven unit）　VLS（Straight Unit）
RW Roller width (mm) ^*1	305	390	490	620	690	790	890	990
FW Inner frame width(mm)	315	400	500	630	700	800	900	1,000
W External frame width(mm)	375	460	560	690	760	860	960	1,060
Roller pitch (mm)	100、75、 50 (carrier rollers: Ø42.7)
L Length (mm) ^*2	1,000〈1,050〉　2,000〈1,950〉　3,000 （VLM：100P…800≦L≦3,000、75P…825≦L≦3,000、 50P…850≦L≦3,000 ）（VLS：100P…400≦L≦3,000、75P…450≦L≦3,000、 50P…800≦L≦3,000 ）
Minimum height (mm)	VLM: 300 or 330 (with 305RW) / VLS: 210
Frame (mm)	130×30×11.5×t2.3
Carrier rollers	φ48.6 (with grooves)
Belt	Urethane round belt
Speed (50/60 Hz) ^*3	（VLM） 0.4kW・0.75kW：15/18 20/24 30/36 m/min ／ 1.5kW：30/36 m/min
Motor output ^*4	（VLM）0.4kW 0.75kW 1.5kW
Power supply	（VLM）200V AC (3-phase)

1.5kW motors are not applied to 305RW.
Lengths in parentheses apply to units with a 75 mm pitch.
Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.　
Premium efficiency motors are adapted for 0.75kW and 1.5kW.

We can manufacture systems with non-standard specifications. Please contact Okura for more information.
