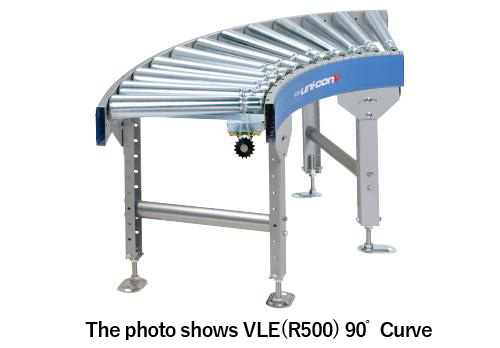

Line-shaft driven roller conveyors

*Colored text is semi-standard.

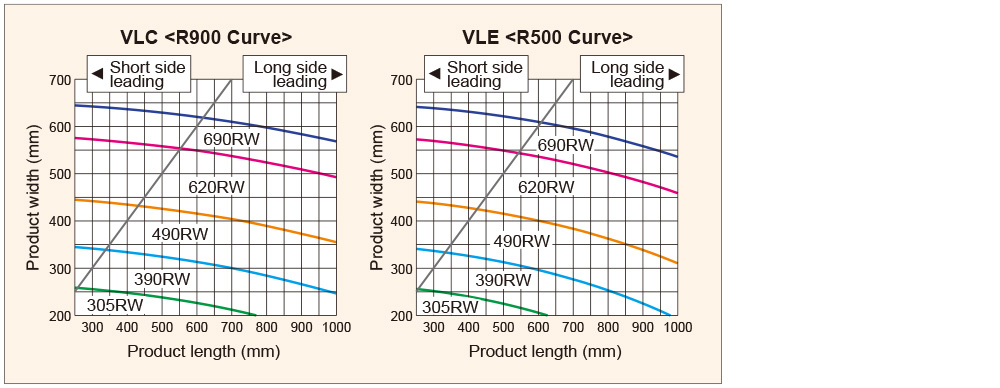

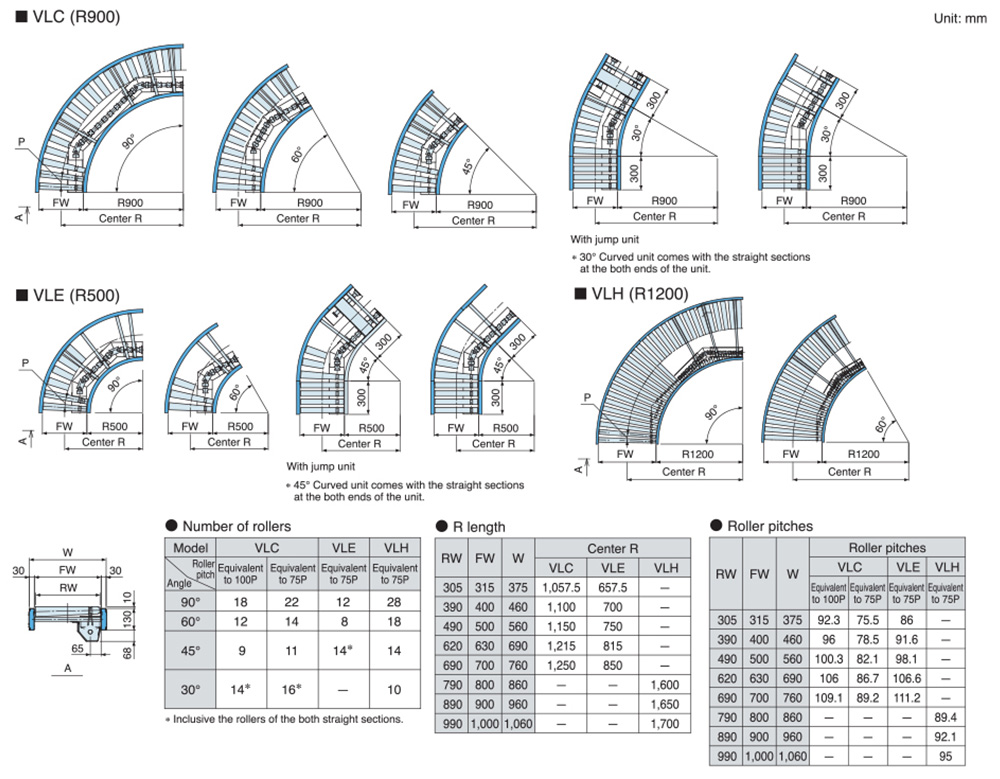

Model	VLC（R900 Curve Unit）　VLE（R500 Curve Unit）　VLH（R1200 Curve Unit）
Inner radius (mm)	VLC：900／VLE：500					VLH：1200
RW Roller width (mm)	305	390	490	620	690	790	890	990
FW Inner frame width(mm)	315	400	500	630	700	800	900	1,000
W External frame width(mm)	375	460	560	690	760	860	960	1,060
Roller pitch (mm)	VLC：Equivalent to 100, equivalent to 74 ／ VLE：Equivalent to 75					Equivalent to 75
Curve angle	VLC：90°,60°,45°,300＋30°＋300 VLE：90°,60°,300＋45°＋300					90°,60°,45°,30°
Minimum height (mm)	210
Frame (mm)	130×30×11.5×t2.3
Carrier rollers	Tapered roller with groove diameter 42.7mm
Belt	Urethane round belt

• 90°curved units with a motor can be fabricated dependent on consultation with Okura.
• We can manufacture systems with non-standard specifications. Please contact Okura for more information.
• The line shaft is always inside.
