Line-shaft driven roller conveyors
VLB（30ﾟ Discharge unit）
Line-shaft driven roller conveyors
Specifications
*Colored text is semi-standard.
| Model | VLB（30ﾟ discharge unit） | ||||
|---|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 |
| W External frame width(mm) | 375 | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | 75 | ||||
| Frame (mm) |  130×30×11.5×t2.3 |
||||
| Carrier rollers | φ48.6 (with grooves) | ||||
| Belt | Urethane round belt | ||||
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

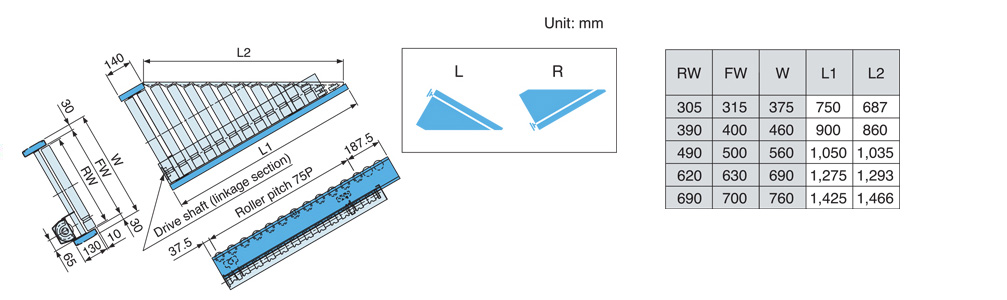

Standard drawings
