Belt conveyors

VBL

VBL

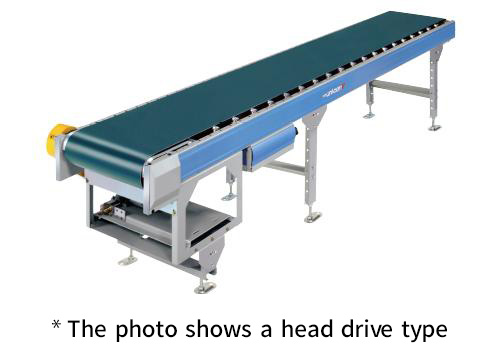

Horizontal belt conveyor

These belt conveyors can move a variety of products reliably, including cases, pouches, and unstable items.

Specifications（① Head drive, Hollow-shaft motor）

*Colored text is semi-standard.

Model VBL（Head Drive Hollow-shaft motor）
BW Belt width (mm) 265 350 450 580 650 750 850 950
FW Inner frame width (mm) 315 400 500 630 700 800 900 1,000
W External frame width (mm) 375 460 560 690 760 860 960 1,060
Carrier roller pitch (mm) 150
L Length (mm) Tail take-up：1,200≦L≦3,600　
Tail take-up（with a spring）：1,200≦L≦9,600　
Center take-up（with a spring）：1,350≦L≦15,450
Minimum height (mm) 250
Frame (mm) 130×30×11.5×t2.3
Belt *1 Plastic belt (2-ply) Belt connections use special lacing.
Speed (50/60 Hz) *2 15/18　20/24　30/36 m/min
Motor output *3 0.2kW　0.4kW　0.75kW　
Power supply 200V AC (3-phase)
  1. Endless type may be used depending on operating conditions.
  2. Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
  3. Premium efficiency motors are adapted for 0.75kW and 1.5kW.
  • We can manufacture systems with non-standard specifications. Please contact Okura for more information.

Specifications（② Head drive）

*Colored text is semi-standard.

Model VBL(Head drive）
BW Belt width (mm) 265 350 450 580 650 750 850 950
FW Inner frame width (mm)） 315 400 500 630 700 800 900 1,000
W External frame width (mm) 375 460 560 690 760 860 960 1,060
Carrier roller pitch (mm) 150
L Length (mm) Tail take-up：1,200≦L≦3,600　
Tail take-up（with a spring）：1,200≦L≦9,600　
Center take-up（with a spring）：1,350≦L≦15,450
Minimum height (mm) 500
Frame (mm) 130×30×11.5×t2.3
Belt *1 Plastic belt (2-ply) Belt connections use special lacing.
Speed (50/60 Hz) *2 15/18　20/24　30/36 m/min
Motor output *3 0.4kW　0.75kW　1.5kW　
Power supply 200V AC (3-phase)
  1. Endless type may be used depending on operating conditions.
  2. Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
  3. Premium efficiency motors are adapted for 0.75kW and 1.5kW.
  • We can manufacture systems with non-standard specifications. Please contact Okura for more information.

Specifications（③ Center drive）

*Colored text is semi-standard.

Model VBL(Center drive）
BW Belt width (mm) 265 350 450 580 650 750 850 950
FW Inner frame width (mm) 315 400 500 630 700 800 900 1,000
W External frame width (mm) 375 460 560 690 760 860 960 1,060
Carrier roller pitch (mm) 150
L Length (mm) Without center take-up: 1,200 to 15,300
With center take-up: 15,300 to 27,300
Minimum height (mm) 500
Frame (mm) 130×30×11.5×t2.3
Belt *1 Plastic belt (2-ply) Belt connections use special lacing.
Speed (50/60 Hz) *2 15/18　20/24　30/36 m/min
Motor output *3 0.4kW　0.75kW　1.5kW　
Power supply 200V AC (3-phase)
  1. Endless type may be used depending on operating conditions.
  2. Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
  3. Premium efficiency motors are adapted for 0.75kW and 1.5kW.
  • We can manufacture systems with non-standard specifications. Please contact Okura for more information.

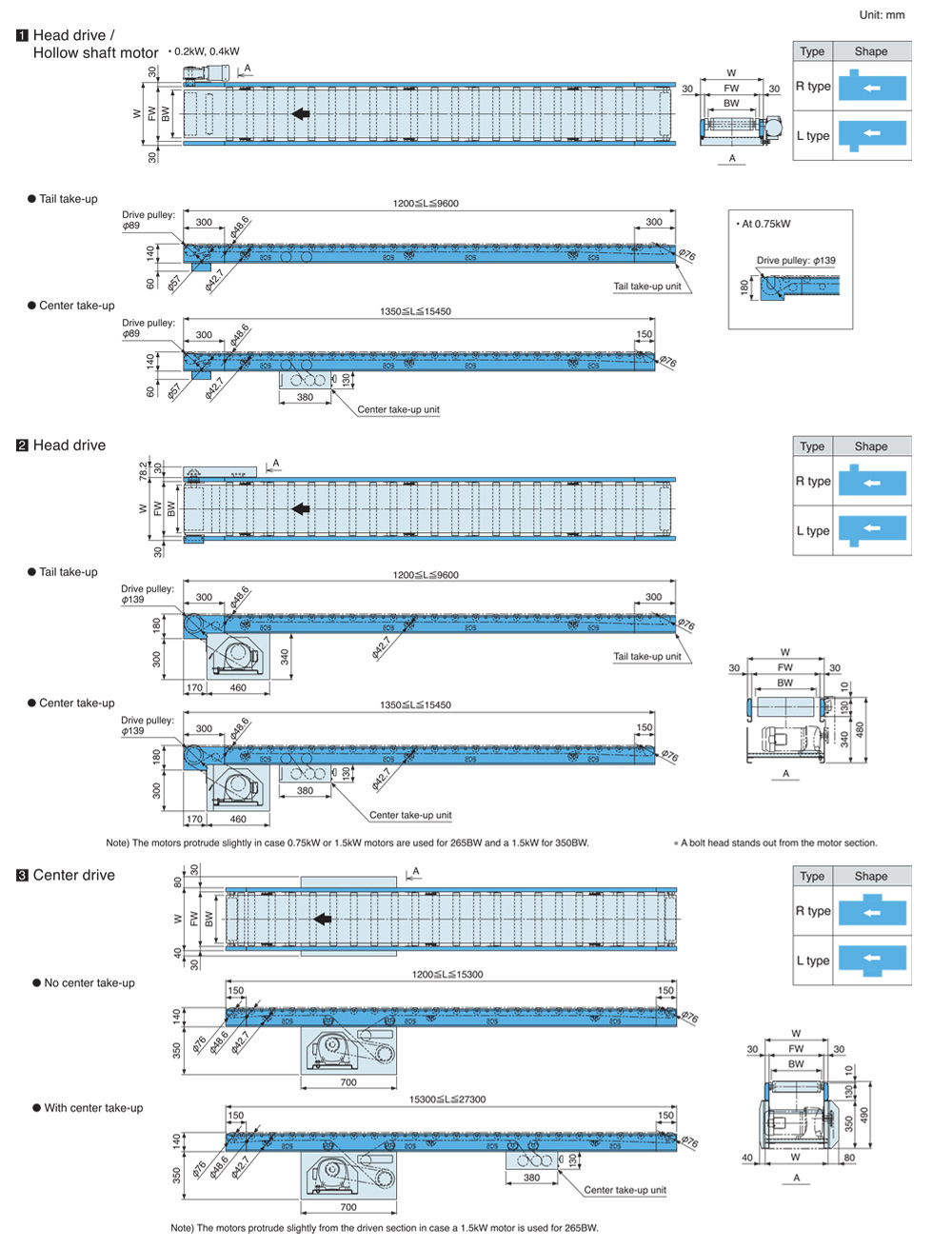

Standard drawings
