Pallet conveyor (Aluminum chain conveyors)
YTC
アルミチェーン転換機
Specifications
| Model | YTC50 (for empty pallets) | YTC60, YTC80 (for loaded pallets) |
|---|---|---|
| Chain | #50 flat chain | #60, #80 flat chain |
| Width (mm) | (Chain center: Min. 550) + 52 | (Chain center: Min. 740) + 62 |
| Length (mm) | 700〜1,200 | 810〜1,200 |
| Minimum height (mm) | 400 | 650 |
| Vertical movement method | Air | Motor drive (with 0.4 kW brake) |
| Motor output *1 | 90W×2 | 0.4kW×2、0.75kW×2 |
| Power supply | 200V AC (3-phase) | |
- Premium efficiency motors are adapted for 0.75kW.

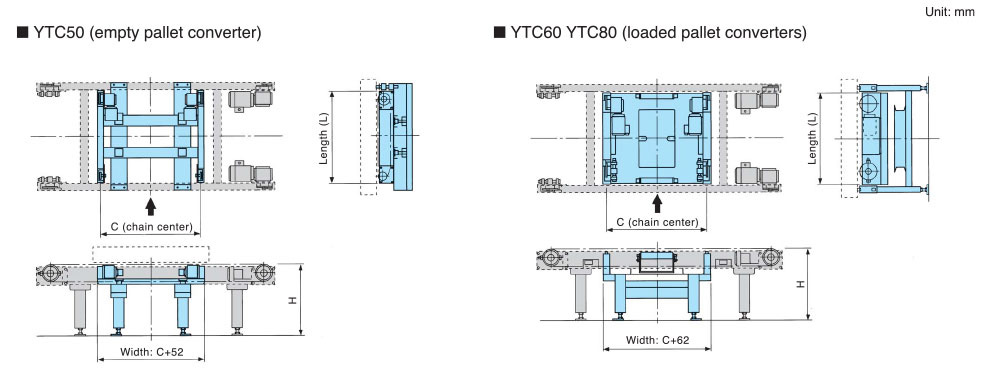

Standard drawings
