Pallet conveyor (pallet accumulation conveyors)
OAQ-P
Pallet accumulation conveyors
Designed to implement reliable accumulation processes, these heavy-duty accumulation conveyors deliver transfer capacity of 1 ton/m.
Specifications
| Model | OAQ-P |
|---|---|
| RW Roller width (mm) | 240 |
| L Length (mm) | 2,000〜23,800 |
| Minimum height (mm) | 450 |
| Frame (mm) | 200×40×25×t3.2 |
| Carrier rollers (mm) | φ57 x t1.4 x 2 rows |
| Roller pitch (mm) | 100 |
| Sensor type | Reflective photoelectric sensor |
| Sensor pitch (mm) | PL + 100, PL + 200, PL + 300, PL + 400, PL + 500 (where PL = pallet length) |
| Speed | 5 10 12 15m/min |
| Air pressure | 0.15MPa |
| Motor output | 0.4kW 0.75kW 1.5kW |
| Power supply | 200V AC (3-phase) |
| Handled products | MAX.1,000kg/m |
- Maximum length of 23,800 mm reflects pallet width of 800 mm, sensor pitch of 1,300 mm, and accumulation count of 18.
- Premium efficiency motors are adapted for 0.75kW and 1.5kW.

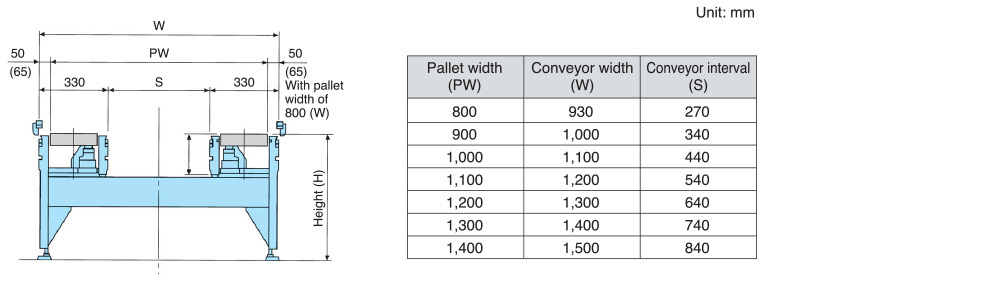

Standard drawings

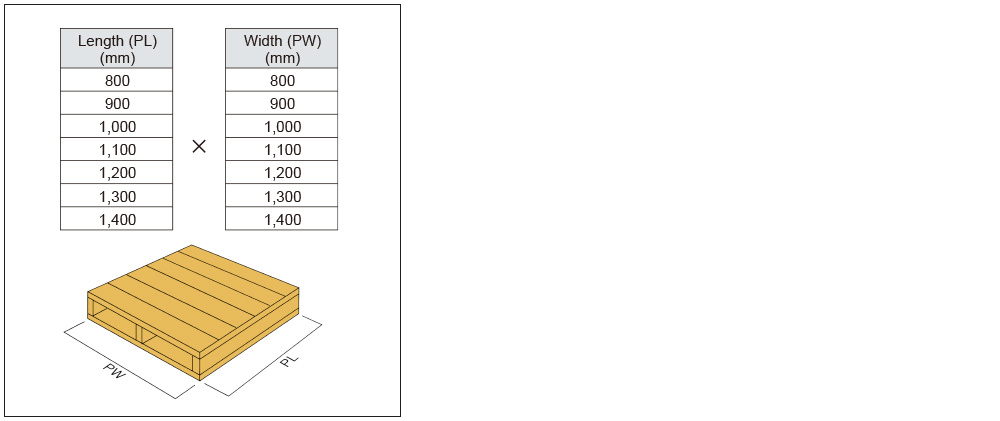

Supported pallet dimensions
