Line-shaft driven roller conveyors
CLR (30ﾟ roller diverters)
Line-shaft driven roller conveyors
Line-shaft driven roller diverter unit
Specifications
| Model | CLR (30ﾟ roller diverters) | |||
|---|---|---|---|---|
| RW Roller width (mm) | 390 | 490 | 620 | 690 |
| FW Inner frame width(mm) | 400 | 500 | 630 | 700 |
| W External frame width (mm) | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | 75 | |||
| L Length (mm) | 1,950 | |||
| Minimum height (mm) | 300 | |||
| Frame (mm) | Stainless steel [ 110 x 30 x t2 with #400 surface finish | |||
| Carrier rollers | Stainless steel φ48.6 x t1.2 with grooves and #400 surface finish | |||
| Belt | Urethane round belt | |||
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

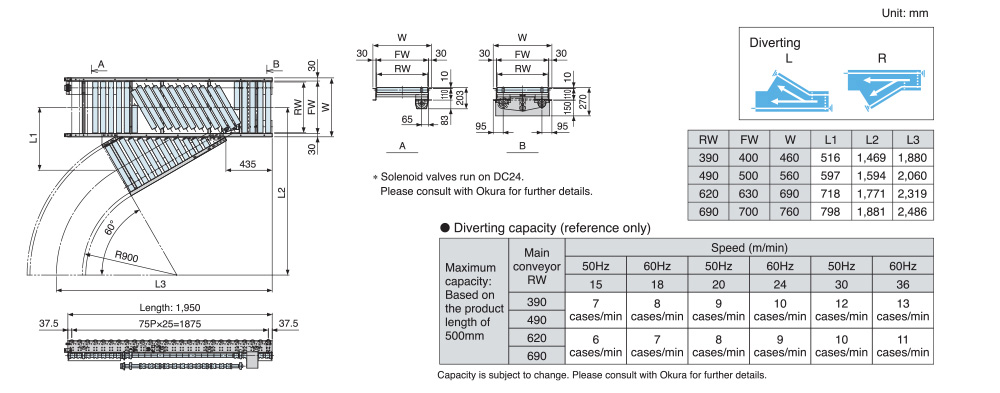

Standard drawings
