Line-shaft driven roller conveyors
CLJ (jump units)
Line-shaft driven roller conveyors
These units allow the drive shaft position or gear ratio (1:1.5) to be changed midway in a line.
Specifications
| Model | CLJ (jump units) | ||||
|---|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 |
| W External frame width (mm) | 375 | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | 100、75 | ||||
| L Length (mm) | Standard length: 1,800 2,400 （100P…900≦L≦2,400、75P…750≦L≦2,400） |
||||
| Minimum height (mm) | 300 | ||||
| Frame (mm) | Stainless steel [ 110 x 30 x t2 with #400 surface finish | ||||
| Carrier rollers | Stainless steel φ48.6 x t1.2 with grooves and #400 surface finish | ||||
| Belt | Urethane round belt | ||||
| Gear ratio | 1：1 1：1.5 | ||||
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

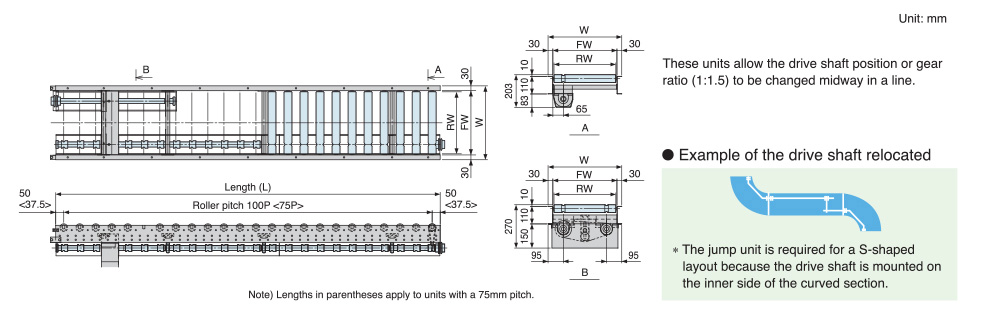

Standard drawings
