Line-shaft driven roller conveyors
CLC (curved units)
Line-shaft driven roller conveyors

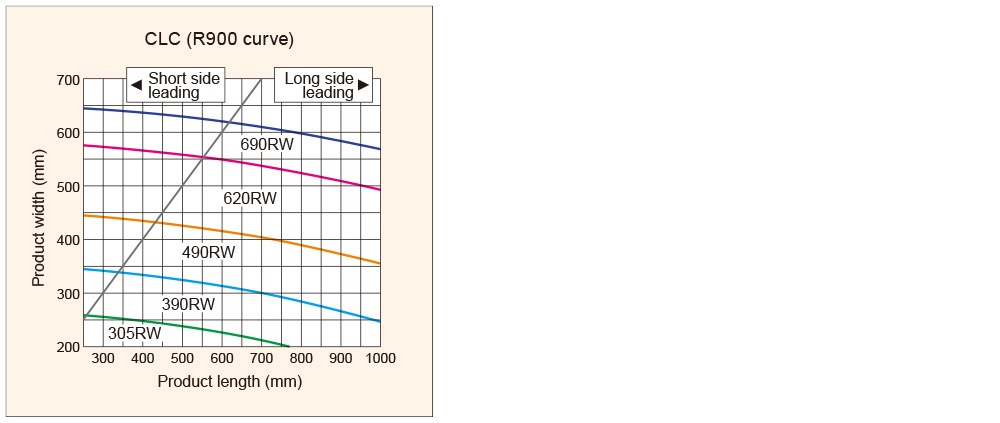

Line-shaft driven curved roller conveyor with three different inner radius(90°,60°,and 45°) for R900
Specifications
| Model | CLC (curved units) | ||||
|---|---|---|---|---|---|
| Inner radius (R) (mm) | 900 | ||||
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 |
| W External frame width (mm) | 375 | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | Equivalent to 100, Equivalent to 75 | ||||
| Curve angle | 90° 60° 45° | ||||
| Minimum height (mm) | 300 | ||||
| Frame (mm) | Stainless steel [ 110 x 30 x t2 with #400 surface finish | ||||
| Carrier rollers | Inner radius φ42.7 Stainless tapered roller with a groove, surface finished with #400 | ||||
| Belt | Urethane round belt | ||||
- 90°curve units can be made. Please consult with Okura for details.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.
- The drive shalf is positioned only at the inner R side.

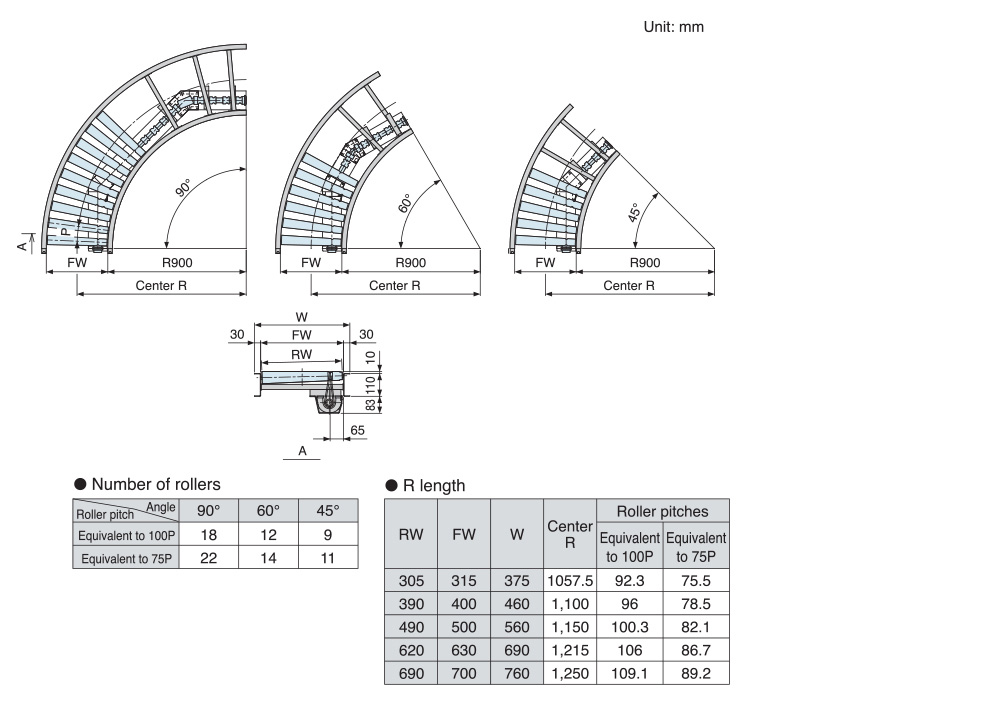

Standard drawings
