Chain-driven straight type

CCA

CCA

Chain-driven accumulation conveyors

Chain driven powerful accumulation conveyor

Specifications

*Colored text is semi-standard.

Model CCA
Drive system Friction drive
RW Roller width (mm) *1 305 390 490 620 690
RW1 Effective roller width (mm) 272 357 457 587 657
FW Inner frame width(mm) 315 400 500 630 700
W External frame width (mm) 375 460 560 690 760
Roller pitch (mm) 100、75
L Length (mm) 100P…1,000≦L≦9,000、75P…1,050≦L≦9,000
Minimum height (mm) 400
Frame (mm) Stainless steel [ 110 x 30 x t2 with #400 surface finish
Carrier rollers Stainless steel φ48.6 with stainless steel sprockets (#40 x 8T)
Chain #40 roller chain (rust-resistant finish)
Speed (50/60 Hz) *2 0.2kW・0.4kW:15/18 20/24 30/36 m/min / 0.75kW:30/36 m/min
Motor output *3 0.2kW 0.4kW 0.75kW
Power supply 200V AC (3-phase)
  1. The 305RW is not available with the 0.75 kW motor.
  2. Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
  3. Premium efficiency motors are adapted for 0.75kW and 1.5kW.
  • Optional waterproof motor (IP65) is also available.
  • We can manufacture systems with non-standard specifications. Please contact Okura for more information.

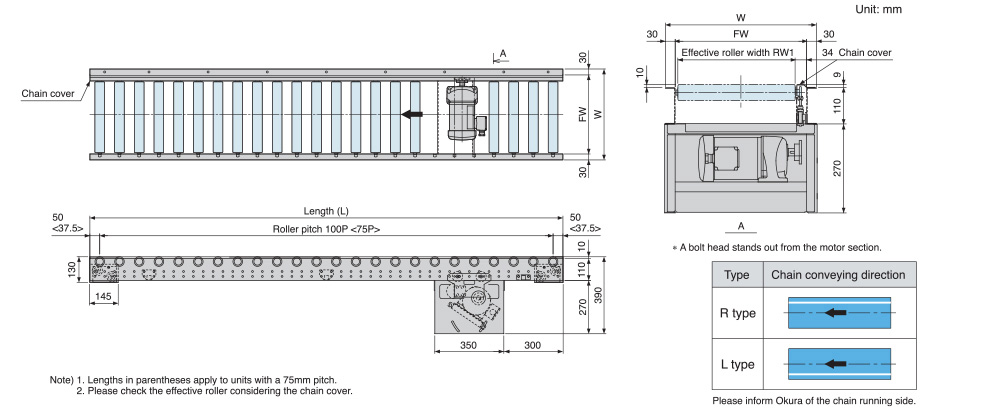

Standard drawings
