Belt conveyors
CBL
Horizontal belt conveyors
These belt conveyors can move a variety of products reliably, including cases, pouches, and items with indeterminate form.
Specifications(Head drive hollow shaft motor)
| Model | CBL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Drive system | Head drive | |||||||||
| BW Belt width (mm) | 265 | 350 | 450 | 580 | 650 | |||||
| FW Inner frame width (mm) | 315 | 400 | 500 | 630 | 700 | |||||
| W External frame width (mm) | 375 | 460 | 560 | 690 | 760 | |||||
| Carrier roller pitch (mm) | 150 | |||||||||
| L Length (mm) | 1,475≦L≦9,500 | |||||||||
| Minimum height (mm) | 300 | |||||||||
| Frame (mm) | Stainless steel [ 110 x 30 x t2 with #400 surface finish | |||||||||
| Belt | Plastic belt (2-ply), Endless-type belt connection | |||||||||
| Speed (50/60 Hz) *1 | 15/18 20/24 30/36 m/min | |||||||||
| Motor output *2 | 0.2kW 0.4kW 0.75kW | |||||||||
| Power supply | 200V AC (3-phase) | |||||||||
- Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- Premium efficiency motors are adapted for 0.75kW and 1.5kW.
- Optional waterproof motor (IP65) is also available.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.
Specifications(Center drive）
| Model | CBL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Drive system | Center drive | |||||||||
| BW Belt width (mm) | 265 | 350 | 450 | 580 | 650 | |||||
| FW Inner frame width (mm) | 315 | 400 | 500 | 630 | 700 | |||||
| W External frame width (mm) | 375 | 460 | 560 | 690 | 760 | |||||
| Carrier roller pitch (mm) | 150 | |||||||||
| L Length (mm) | 1,200≦L≦18,300 | |||||||||
| Minimum height (mm) | 450 | |||||||||
| Frame (mm) | Stainless steel [ 110 x 30 x t2 with #400 surface finish | |||||||||
| Belt | Plastic belt (2-ply), Endless-type belt connections | |||||||||
| Speed (50/60 Hz) | 15/18 20/24 30/36 m/min | |||||||||
| Motor output | 0.4kW 0.75kW | |||||||||
| Power supply | 200V AC (3-phase) | |||||||||
- Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- Premium efficiency motors are adapted for 0.75kW and 1.5kW.
- Optional waterproof motor (IP65) is also available.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

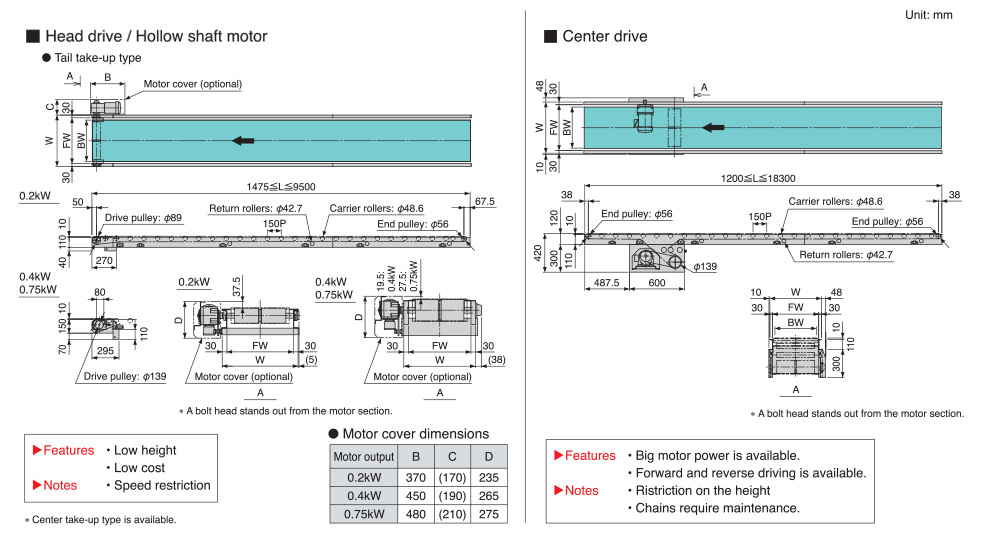

Standard drawings
