Roller diameter of φ60.5xt2.3 with #40x10T sprockets (heavy-duty type)
CMR4SS steel sprockets (with bearings)
Product information
■Roller×Thickness：φ60.5×t2.3mm
■Sprocket：#40×10T（Steel）
■Shaft dimensions：φ11.8mm round steel
■Roller length that can be produced（effective roller width）：305～690mm
Specifications
|
- |
|
 | Model | CMR（Roller diameter φ60.5） | ||||||
|---|---|---|---|---|---|---|---|---|
 | Nominal roller width (mm) | 305 | 390 | 490 | 620 | 690 | ||
| RW Effective roller width（mm） | 302 | 387 | 487 | 617 | 687 | |||
| FW Inner frame width (mm) | 339 | 424 | 524 | 654 | 724 | |||
| L Shaft length(mm) | 349 | 434 | 534 | 664 | 734 | |||
 | Chain | #40 chain | ||||||
 | No. of chain rows | S: 1 chain (single) | ||||||
 | Sprockets | S: steel sprockets (with bearings) | ||||||
 | Bearings | D:Bearings for driving | ||||||
 | Shaft | N: no shaft A: shaft | ||||||

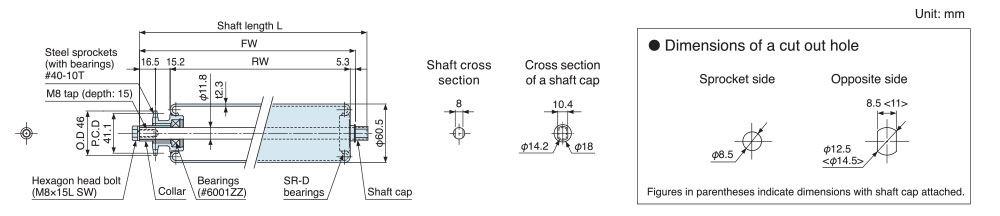

Standard drawings

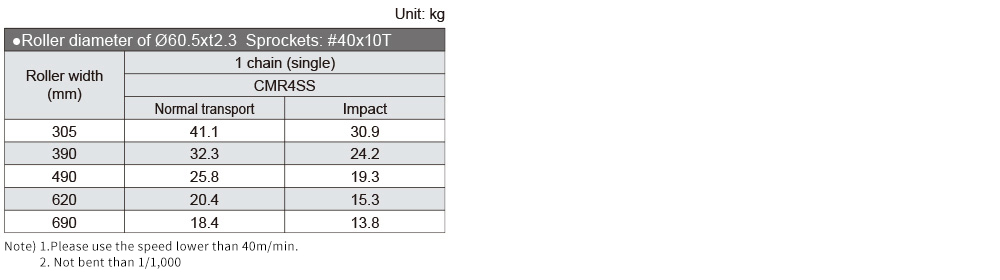

Load weight per roller
