Product Information

Roller diameter of φ60.5 x t3.8 with #50 x 11T sprockets (heavy-duty type)

CMM5WS steel sprockets, double (with bearings)

Product information

■Roller×Thickness:φ60.5×t3.8mm
■Sprocket:#50×11T(Steel)
■Shaft dimensions:φ15mm round steel
■Roller length that can be produced(effective roller width):305~1,190mm

Specifications

Example models
■Straight rollers
1 CMM 2 5 3 W 4 S 5 890 6 C
-
7 N

*Colored text is semi-standard.

1Model CMM(Roller diamter φ60.5)
2Nominal roller width (mm) 305 390 490 620 690 790 890 990 1,090 1,190
RW Effective roller width(mm) 267 352 452 582 652 752 852 952 1,052 1,152
FW Inner frame width (mm) 340 425 525 655 725 825 925 1,025 1,125 1,225
L Shaft length(mm) 355 440 540 670 740 840 940 1,040 1,140 1,240
2Chain #50 chain
3No. of chain rows S: 1 chain (single)
4Sprockets S: steel sprockets (with bearings)
6Bearings C: Heavy duty bearings
7Shaft N: no shaft A: shaft

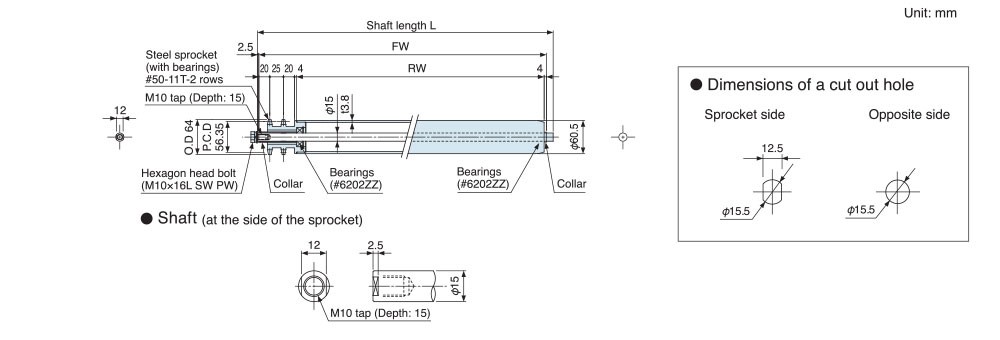

Standard drawings

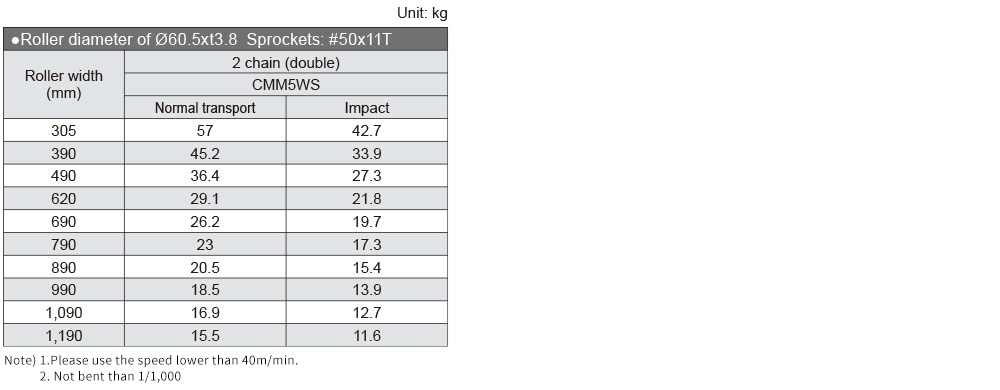

Load weight per roller
