Chain driven roller conveyor

Powerful conveyor using the chains to drive the rollers.

Specifications

*Colored text is semi-standard.

Model OSS
Drive system Forced drive
Transfer weight MAX.100kg/m
RW Roller width (mm) 305 390 490 620 690 790 890 990
RW1 Effective roller width (mm) 274 359 459 589 659 759 859 959
FW Inner frame width (mm) 315 400 500 630 700 800 900 1,000
W External frame width (mm) 375 460 560 690 760 860 960 1,060
Roller pitch (mm) φ42.7:50 φ57:100、75
L Length (mm) 1,000 (75 pitch: 1,050) to 12,000
Minimum height (mm) 400
Frame (mm) 110×30×t3.2
Carrier rollers φ42.7 φ57 with steel sprocket(#40×10T)
Chain #40 roller chain, #40 low-noise chain
Speed (50/60 Hz) *1 0.2kW:5/6 10/12 15/18 20/24 30/36 m/min
0.4kW:10/12 15/18 20/24 30/36 m/min
0.75kW:30/36 m/min
Motor output *2 0.2kW 0.4kW 0.75kW
Power supply 200V AC (3-phase)
  1. Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
  2. Premium efficiency motors are adapted for 0.75kW.
  • We can manufacture systems with non-standard specifications. Please contact Okura for more information.

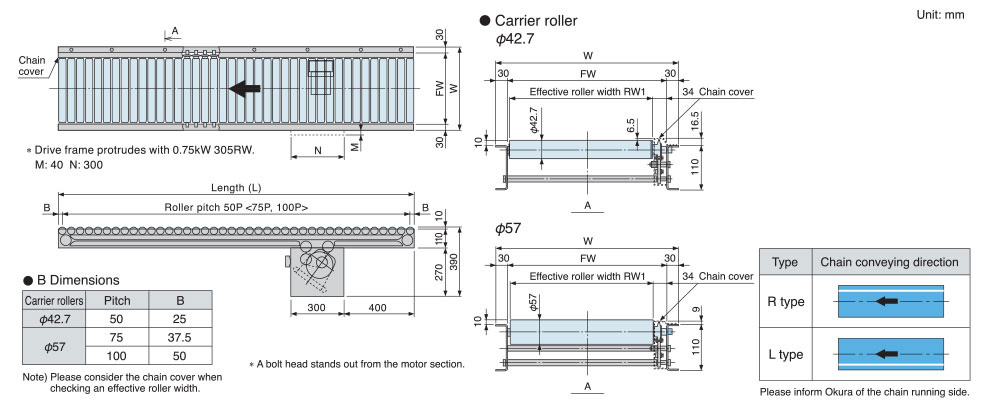

Standard drawings

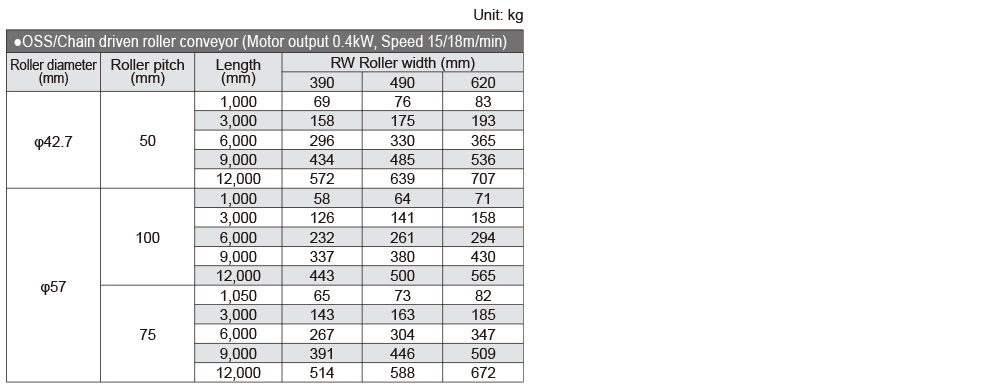

Weight
